Diffraction project datasets HP10622H_2qj8

  • Method: SAD
  • Resolution: 2.0 Å
  • Space group: P 21 21 21
Download all images (2.0 GB)

PDB website for 2QJ8

doi:10.18430/M32QJ8

Project details

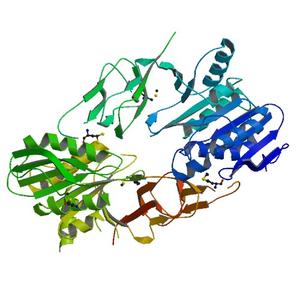

Title Crystal structure of an aspartoacylase family protein (mlr6093) from mesorhizobium loti maff303099 at 2.00 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.21 / 0.25
Unit cell edges [Å] 81.05 x 86.14 x 94.63
Unit cell angles [°] 90.0, 90.0, 90.0

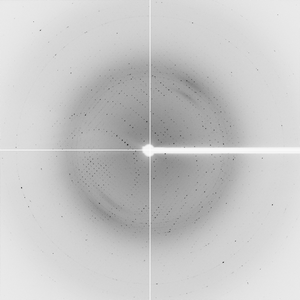

Dataset 53083_1_###.img details

Number of frames 240 (1 - 240)
Distance [mm] 180.0
Oscillation width [°] 0.50
Phi [°] 327.0
Wavelength [Å] 0.97866
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)

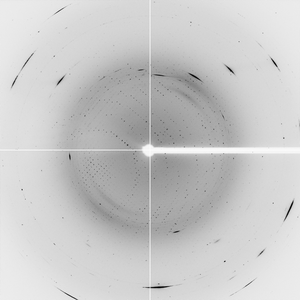

Dataset 53083_2_E1_###.img details

Number of frames 100 (1 - 100)
Distance [mm] 180.0
Oscillation width [°] 0.50
Phi [°] 327.0
Wavelength [Å] 0.97922
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)

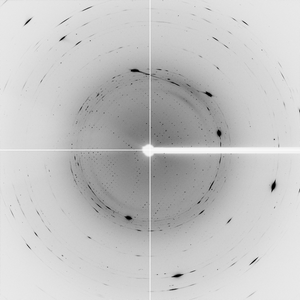

Dataset 53083_2_E2_###.img details

Number of frames 100 (1 - 100)
Distance [mm] 180.0
Oscillation width [°] 0.50
Phi [°] 327.0
Wavelength [Å] 0.91838
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)
