Diffraction project datasets HDAC6-x304_5b8d
- Resolution: 1.05 Å
- Space group: P 21 21 21
PDB website for 5B8D
doi:10.18430/M35B8D
Project details

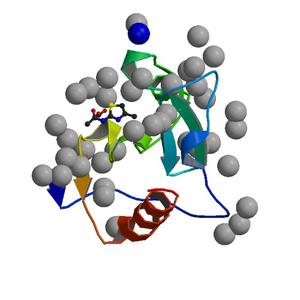

| Title | Crystal structure of a low occupancy fragment candidate (N-(4-Methyl-1,3-thiazol-2-yl)propanamide) bound adjacent to the ubiquitin binding pocket of the HDAC6 zinc-finger domain |
| Authors | Harding, R.J., Ferreira de Freitas, R., Collins, P., Franzoni, I., Ravichandran, M., Ouyang, H., Juarez-Ornelas, K.A., Lautens, M., Schapira, M., von Delft, F., Santhakumar, V., Arrowsmith, C.H. |
| R / Rfree | 0.13 / 0.15 |
| Unit cell edges [Å] | 41.43 x 44.16 x 56.55 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

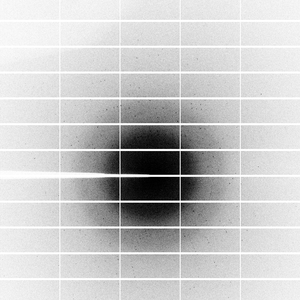

Dataset HDAC6-x304_1_####.cbf details
| Number of frames | 1500 (1 - 1500) |
| Distance [mm] | 202.4 |
| Oscillation width [°] | 0.12 |
| Wavelength [Å] | 0.92819 |
| Experiment Date | 2015-09-30 |
| Equipment | I04-1 at DIAMOND (Diamond Light Source) |
