Diffraction project datasets GS7807P_3cgh
- Method: MAD
- Resolution: 1.7 Å
- Space group: C 2 2 21
PDB website for 3CGH
PDB validation report for 3CGH
doi:10.18430/M33CGH
Project details

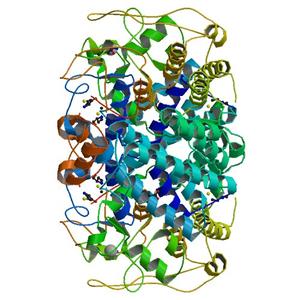

| Title | Crystal structure of a susd homolog (bt_3984) from bacteroides thetaiotaomicron vpi-5482 at 1.70 A resolution |
| Authors | Bakolitsa, C., Xu, Q., Rife, C.L., Abdubek, P., Astakhova, T., Axelrod, H.L., Carlton, D., Chen, C., Chiu, H.J., Clayton, T., Das, D., Deller, M.C., Duan, L., Ellrott, K., Farr, C.L., Feuerhelm, J., Grant, J.C., Grzechnik, A., Han, G.W., Jaroszewski, L., Jin, K.K., Klock, H.E., Knuth, M.W., Kozbial, P., Krishna, S.S., Kumar, A., Lam, W.W., Marciano, D., McMullan, D., Miller, M.D., Morse, A.T., Nigoghossian, E., Nopakun, A., Okach, L., Puckett, C., Reyes, R., Tien, H.J., Trame, C.B., van den Bedem, H., Weekes, D., Hodgson, K.O., Wooley, J., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.14 / 0.17 |
| Unit cell edges [Å] | 49.78 x 125.27 x 174.65 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset 77705_1_E1_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 38.0 |
| Wavelength [Å] | 0.97922 |
| Experiment Date | 2008-02-21 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

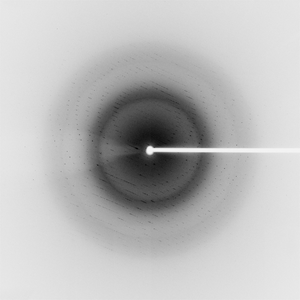

Dataset 77705_1_E2_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 38.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2008-02-21 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

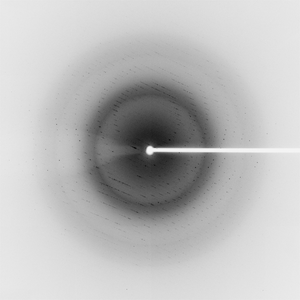

Dataset 77705_2_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 38.0 |
| Wavelength [Å] | 0.97911 |
| Experiment Date | 2008-02-21 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
