Diffraction project datasets GS7807N_4ler

  • Method: MAD
  • Resolution: 1.42 Å
  • Space group: P 41 21 2
Download all images (5.4 GB)

PDB website for 4LER
PDB validation report for 4LER

doi:10.18430/M34LER

Project details

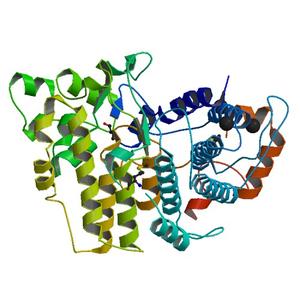

Title Crystal structure of a putative outer membrane protein, probably involved in nutrient binding (BVU_1254) from Bacteroides vulgatus ATCC 8482 at 1.42 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.14 / 0.17
Unit cell edges [Å] 71.00 x 71.00 x 184.70
Unit cell angles [°] 90.0, 90.0, 90.0

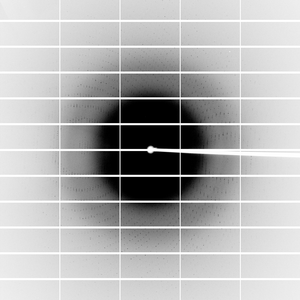

Dataset 195458_1_E1_#####.cbf details

Number of frames 450 (1 - 450)
Distance [mm] 240.0
Oscillation width [°] 0.20
Phi [°] 96.0
Wavelength [Å] 0.97891
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

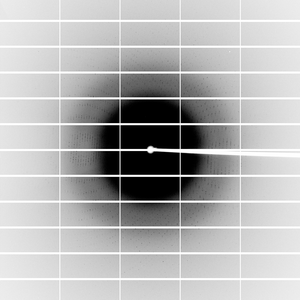

Dataset 195458_1_E2_#####.cbf details

Number of frames 450 (1 - 450)
Distance [mm] 240.0
Oscillation width [°] 0.20
Phi [°] 96.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

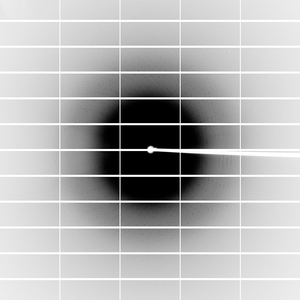

Dataset 195458_2_#####.cbf details

Number of frames 450 (1 - 450)
Distance [mm] 240.0
Oscillation width [°] 0.20
Phi [°] 96.0
Wavelength [Å] 0.97852
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
