Diffraction project datasets GS7807M_4f7a
- Method: SAD
- Resolution: 1.85 Å
- Space group: P 43 3 2
PDB website for 4F7A
PDB validation report for 4F7A
doi:10.18430/M34F7A
Project details

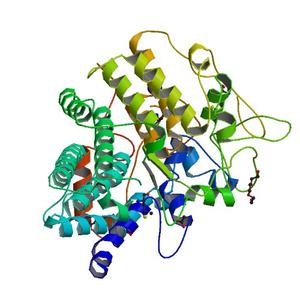

| Title | Crystal structure of a susd homolog (BVU_2203) from Bacteroides vulgatus ATCC 8482 at 1.85 A resolution |
| Authors | JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG) |
| Bioentity | None |
| R / Rfree | 0.14 / 0.16 |
| Unit cell edges [Å] | 160.38 x 160.38 x 160.38 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

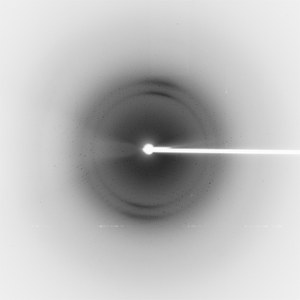

Dataset 180752_1_#####.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 0.25 |
| Phi [°] | 184.0 |
| Wavelength [Å] | 0.97915 |
| Experiment Date | 2012-04-09 |
| Equipment | BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

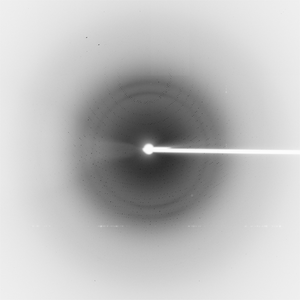

Dataset 180752_2_#####.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 0.25 |
| Phi [°] | 229.0 |
| Wavelength [Å] | 0.97915 |
| Experiment Date | 2012-04-09 |
| Equipment | BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
