Diffraction project datasets GS14085A_3rh3

  • Method: MAD
  • Resolution: 2.1 Å
  • Space group: P 1 21 1
Download all images (15.5 GB)

PDB website for 3RH3
PDB validation report for 3RH3

doi:10.18430/M33RH3

Project details

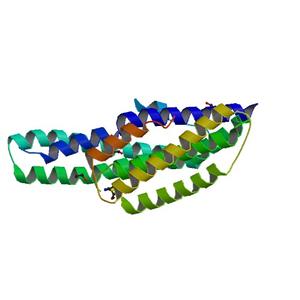

Title Crystal structure of an Uncharacterized DUF3829-like protein (BT_1908) from BACTEROIDES THETAIOTAOMICRON VPI-5482 at 2.10 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.21 / 0.24
Unit cell edges [Å] 64.41 x 50.55 x 87.94
Unit cell angles [°] 90.0, 107.4, 90.0

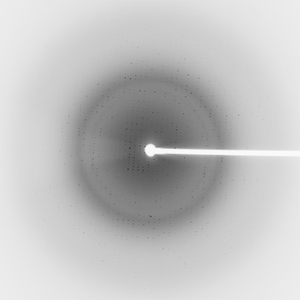

Dataset 165284_1_E1_####.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 61.0
Wavelength [Å] 0.97934
Experiment Date 2011-03-11
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

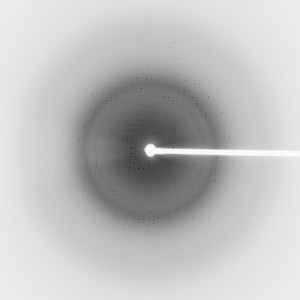

Dataset 165284_1_E2_####.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 61.0
Wavelength [Å] 0.91162
Experiment Date 2011-03-11
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

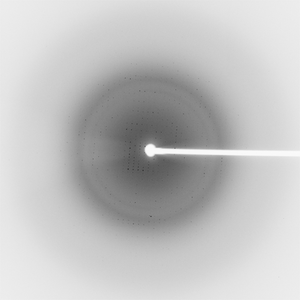

Dataset 165284_2_####.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 61.0
Wavelength [Å] 0.97915
Experiment Date 2011-03-11
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
