Diffraction project datasets GS14063A_3dza
Project details
| Title |

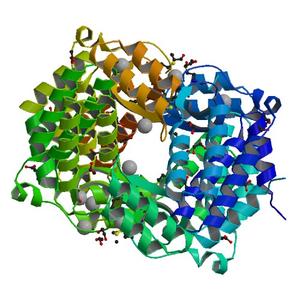

Crystal structure of a putative membrane protein of unknown function (yfdx) from klebsiella pneumoniae subsp. at 1.65 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.15 / 0.19 |
| Unit cell edges [Å] |
68.21 x
79.02 x
137.99
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

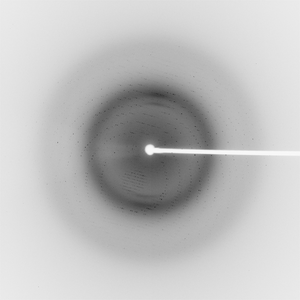

Dataset 86941_1_E1_###.mccd details
| Number of frames |
106 (1 - 106) |
| Distance [mm] |
220.0 |
| Oscillation width [°] |
0.90 |
| Phi [°] |
45.0 |
| Wavelength [Å] |
0.97937 |
| Experiment Date |
2008-06-15 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

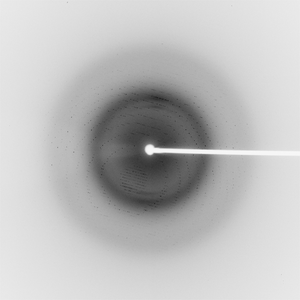

Dataset 86941_1_E2_###.mccd details
| Number of frames |
106 (1 - 106) |
| Distance [mm] |
220.0 |
| Oscillation width [°] |
0.90 |
| Phi [°] |
45.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2008-06-15 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

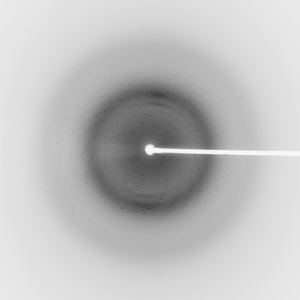

Dataset 86941_2_###.mccd details
| Number of frames |
106 (1 - 106) |
| Distance [mm] |
220.0 |
| Oscillation width [°] |
0.90 |
| Phi [°] |
45.0 |
| Wavelength [Å] |
0.97874 |
| Experiment Date |
2008-06-15 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
