Diffraction project datasets GS14058A_3sgg

  • Method: MAD
  • Resolution: 1.25 Å
  • Space group: C 1 2 1
Download all images (13.8 GB)

PDB website for 3SGG
PDB validation report for 3SGG

doi:10.18430/M33SGG

Project details

Title Crystal structure of a putative hydrolase (BT_2193) from Bacteroides thetaiotaomicron VPI-5482 at 1.25 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 161.91 x 49.37 x 71.36
Unit cell angles [°] 90.0, 114.5, 90.0

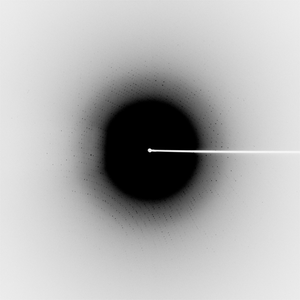

Dataset 166913_1_E1_####.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 150.0
Oscillation width [°] 0.50
Phi [°] 100.0
Wavelength [Å] 0.97941
Experiment Date 2011-05-25
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

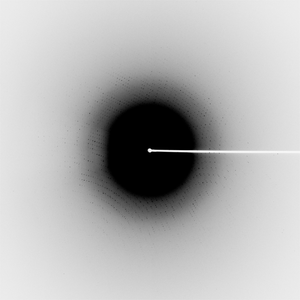

Dataset 166913_1_E2_####.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 150.0
Oscillation width [°] 0.50
Phi [°] 100.0
Wavelength [Å] 0.91837
Experiment Date 2011-05-25
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

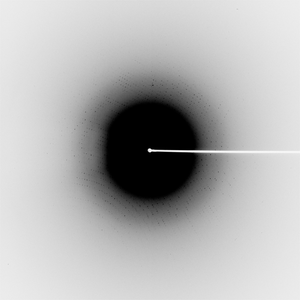

Dataset 166913_2_####.mccd details

Number of frames 300 (1 - 300)
Distance [mm] 150.0
Oscillation width [°] 0.50
Phi [°] 100.0
Wavelength [Å] 0.97904
Experiment Date 2011-05-25
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
