Diffraction project datasets GS14034A_4dgu

  • Method: MAD
  • Resolution: 2.37 Å
  • Space group: C 2 2 21
Download all images (2.4 GB)

PDB website for 4DGU

doi:10.18430/M34DGU

Project details

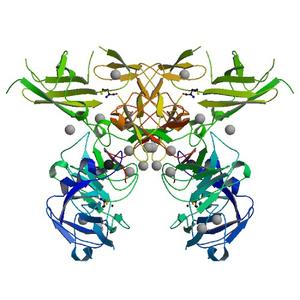

Title Crystal structure of a putative cell adhesion protein (BT0320) from Bacteroides thetaiotaomicron VPI-5482 at 2.37 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
R / Rfree 0.19 / 0.22
Unit cell edges [Å] 83.55 x 127.51 x 110.73
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 173195_1_E1_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 273.0
Wavelength [Å] 0.97937
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

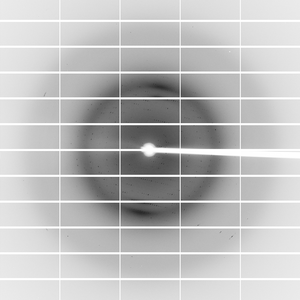

Dataset 173195_1_E2_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 273.0
Wavelength [Å] 0.91837
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

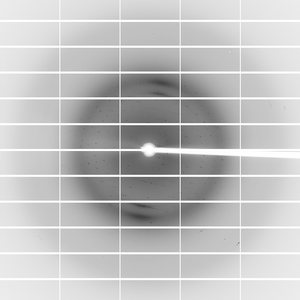

Dataset 173195_2_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 273.0
Wavelength [Å] 0.97867
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
