Diffraction project datasets GS13982A_3kdw
Project details
| Title |

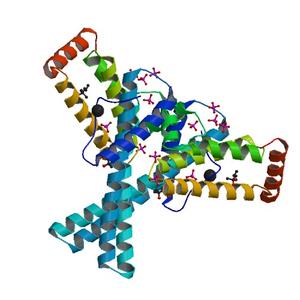

Crystal structure of Putative sugar binding protein (YP_001300177.1) from Bacteroides vulgatus ATCC 8482 at 1.70 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.15 / 0.19 |
| Unit cell edges [Å] |
75.30 x
75.30 x
87.13
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

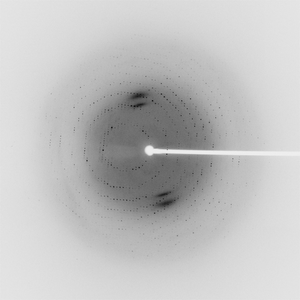

Dataset 125525_1_E1_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
220.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
267.0 |
| Wavelength [Å] |
0.97929 |
| Experiment Date |
2009-07-08 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

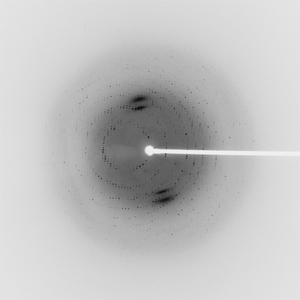

Dataset 125525_1_E2_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
220.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
267.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2009-07-08 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
