Diffraction project datasets GS13982A_3kdw
- Method: MAD
- Resolution: 1.7 Å
- Space group: P 31 2 1
PDB website for 3KDW
PDB validation report for 3KDW
doi:10.18430/M33KDW
Project details

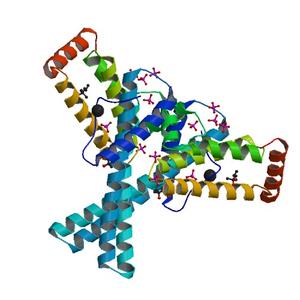

| Title | Crystal structure of Putative sugar binding protein (YP_001300177.1) from Bacteroides vulgatus ATCC 8482 at 1.70 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.15 / 0.19 |
| Unit cell edges [Å] | 75.30 x 75.30 x 87.13 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

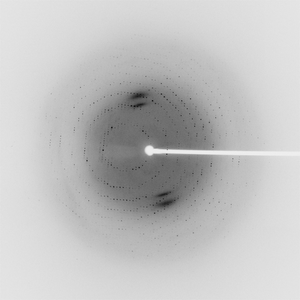

Dataset 125525_1_E1_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 267.0 |
| Wavelength [Å] | 0.97929 |
| Experiment Date | 2009-07-08 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

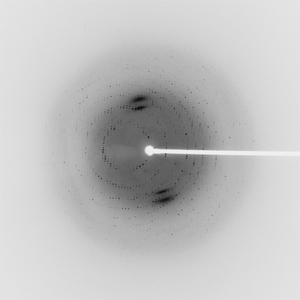

Dataset 125525_1_E2_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 267.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2009-07-08 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
