Diffraction project datasets GS13957A_3s5t

  • Method: MAD
  • Resolution: 2.3 Å
  • Space group: P 65 2 2
Download all images (5.1 GB)

PDB website for 3S5T
PDB validation report for 3S5T

doi:10.18430/M33S5T

Project details

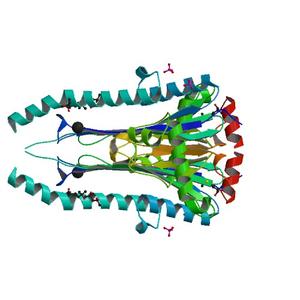

Title Crystal structure of a member of duf3298 family (BF2082) from bacteroides fragilis nctc 9343 at 2.30 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.19 / 0.21
Unit cell edges [Å] 98.33 x 98.33 x 121.13
Unit cell angles [°] 90.0, 90.0, 120.0

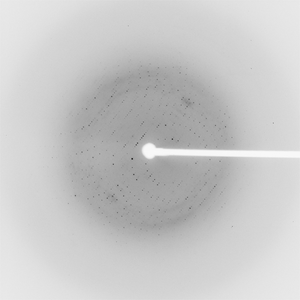

Dataset 166349_1_E1_####.mccd details

Number of frames 128 (1 - 128)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 336.0
Wavelength [Å] 0.97915
Experiment Date 2011-04-20
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 166349_1_E2_####.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 336.0
Wavelength [Å] 0.91837
Experiment Date 2011-04-20
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 166349_2_####.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 336.0
Wavelength [Å] 0.97892
Experiment Date 2011-04-20
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
