Diffraction project datasets GS13941A_3hn0

  • Method: MAD
  • Resolution: 1.75 Å
  • Space group: P 21 21 21
Download all images (6.1 GB)

PDB website for 3HN0
PDB validation report for 3HN0

doi:10.18430/M33HN0

Project details

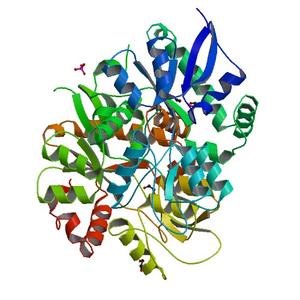

Title CRYSTAL STRUCTURE OF AN ABC TRANSPORTER (BDI_1369) FROM PARABACTEROIDES DISTASONIS AT 1.75 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 47.63 x 97.75 x 114.01
Unit cell angles [°] 90.0, 90.0, 90.0

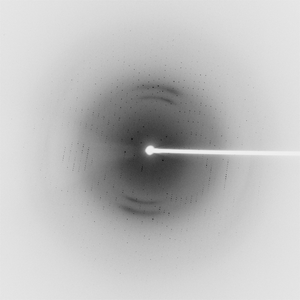

Dataset 110948_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 166.0
Wavelength [Å] 0.97889
Experiment Date 2009-02-22
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

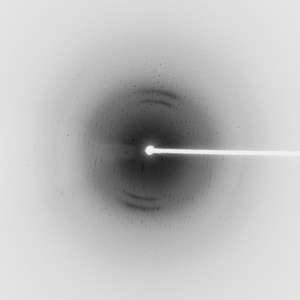

Dataset 110948_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 166.0
Wavelength [Å] 0.91162
Experiment Date 2009-02-22
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

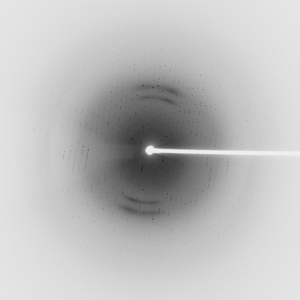

Dataset 110948_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 166.0
Wavelength [Å] 0.97837
Experiment Date 2009-02-22
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
