Diffraction project datasets GS13905B_3eu8

  • Method: MAD
  • Resolution: 2.12 Å
  • Space group: P 1 21 1
Download all images (4.5 GB)

PDB website for 3EU8

doi:10.18430/M33EU8

Project details

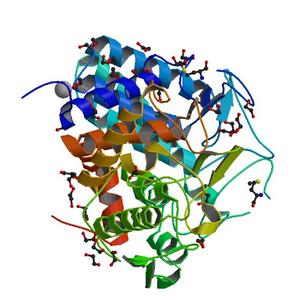

Title Crystal structure of putative glucoamylase (YP_210071.1) from Bacteroides fragilis NCTC 9343 at 2.12 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.16 / 0.21
Unit cell edges [Å] 58.18 x 71.76 x 221.79
Unit cell angles [°] 90.0, 92.3, 90.0

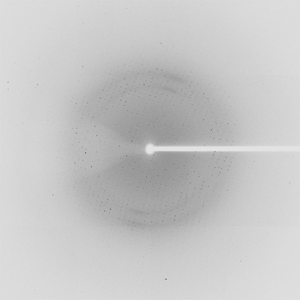

Dataset 90419_1_E1_###.mccd details

Number of frames 51 (1 - 51)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 144.0
Wavelength [Å] 0.97929
Experiment Date 2008-08-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

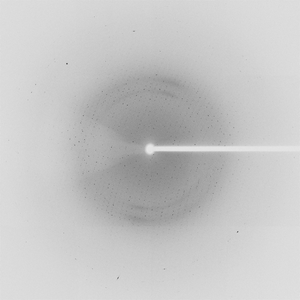

Dataset 90419_1_E2_###.mccd details

Number of frames 30 (1 - 30)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 144.0
Wavelength [Å] 0.91162
Experiment Date 2008-08-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

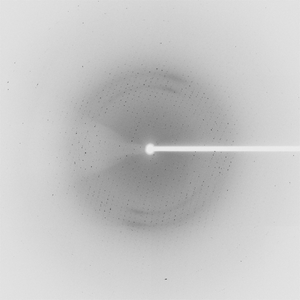

Dataset 90419_2_E1_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 144.0
Wavelength [Å] 0.97929
Experiment Date 2008-08-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

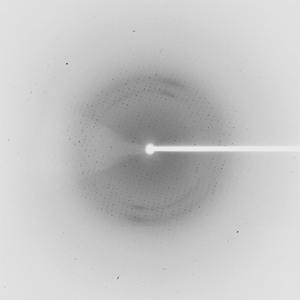

Dataset 90419_2_E2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 144.0
Wavelength [Å] 0.91162
Experiment Date 2008-08-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

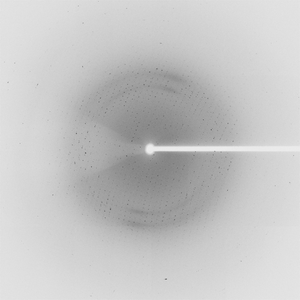

Dataset 90419_3_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 144.0
Wavelength [Å] 0.97920
Experiment Date 2008-08-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
