Diffraction project datasets GS13876A_4qb7

  • Method: MAD
  • Resolution: 2.55 Å
  • Space group: I 2 2 2
Download all images (7.8 GB)

PDB website for 4QB7
PDB validation report for 4QB7

doi:10.18430/M34QB7

Project details

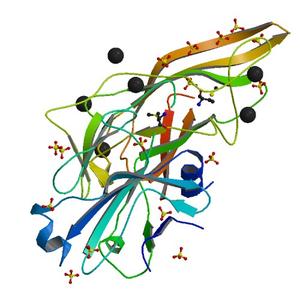

Title Crystal structure of a fimbrial protein (BVU_2522) from Bacteroides vulgatus ATCC 8482 at 2.55 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 54.22 x 186.12 x 211.83
Unit cell angles [°] 90.0, 90.0, 90.0

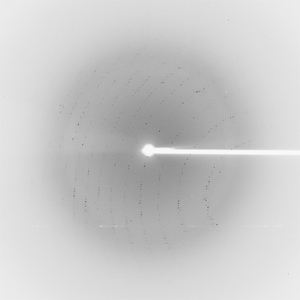

Dataset 200088_1_E1_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 128.0
Wavelength [Å] 0.97934
Experiment Date 2014-03-06
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

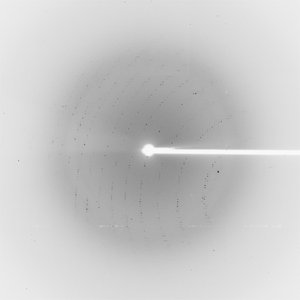

Dataset 200088_1_E2_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 128.0
Wavelength [Å] 0.95369
Experiment Date 2014-03-06
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

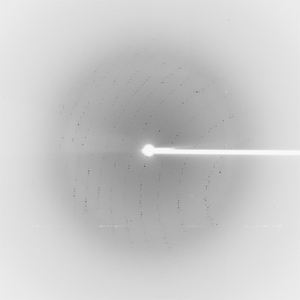

Dataset 200088_2_#####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 128.0
Wavelength [Å] 0.97919
Experiment Date 2014-03-06
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
