Diffraction project datasets GS13864A_4qhb
Project details
| Title |
Crystal structure of a putative hydrolase (BVU_2763) from Bacteroides vulgatus ATCC 8482 at 2.44 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.17 / 0.22 |
| Unit cell edges [Å] |
83.10 x
107.30 x
108.14
|
| Unit cell angles [°] |
90.0,
101.8,
90.0
|

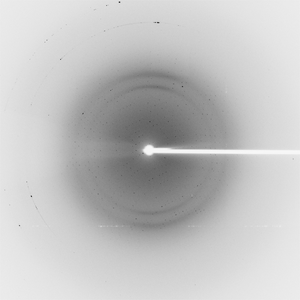

Dataset 198681_1_E1_#####.mccd details
| Number of frames |
300 (1 - 300) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
87.0 |
| Wavelength [Å] |
0.97934 |
| Experiment Date |
2014-02-26 |
| Equipment |
BL14-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

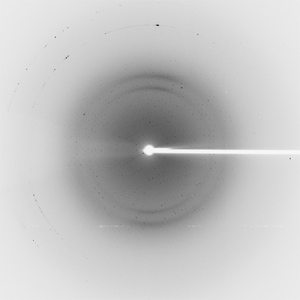

Dataset 198681_1_E2_#####.mccd details
| Number of frames |
300 (1 - 300) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
87.0 |
| Wavelength [Å] |
0.96109 |
| Experiment Date |
2014-02-26 |
| Equipment |
BL14-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

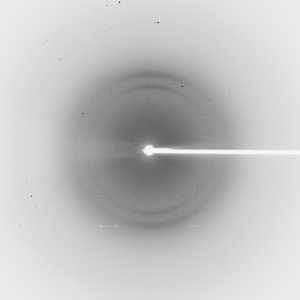

Dataset 198681_2_#####.mccd details
| Number of frames |
300 (1 - 300) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
87.0 |
| Wavelength [Å] |
0.97911 |
| Experiment Date |
2014-02-26 |
| Equipment |
BL14-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
