Diffraction project datasets GS13840A_4jqt

  • Method: MAD
  • Resolution: 2.49 Å
  • Space group: P 21 21 21
Download all images (3.0 GB)

PDB website for 4JQT
PDB validation report for 4JQT

doi:10.18430/M34JQT

Project details

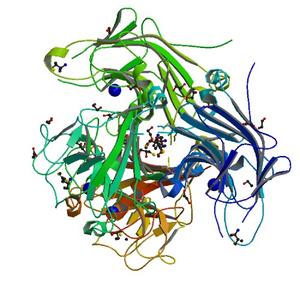

Title Crystal structure of a putative glycosyl hydrolase (BT3469) from Bacteroides thetaiotaomicron VPI-5482 at 2.49 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 85.55 x 87.65 x 141.82
Unit cell angles [°] 90.0, 90.0, 90.0

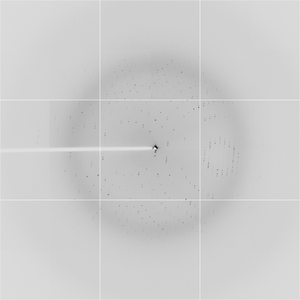

Dataset 187937_1_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 143.0
Wavelength [Å] 0.97949
Experiment Date 2012-10-18
Equipment 8.2.2 at ALS (Advanced Light Source)

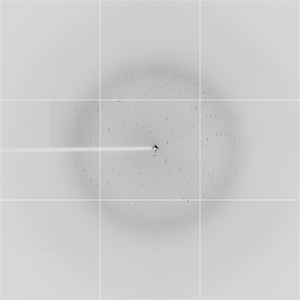

Dataset 187937_1_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 143.0
Wavelength [Å] 0.91840
Experiment Date 2012-10-18
Equipment 8.2.2 at ALS (Advanced Light Source)

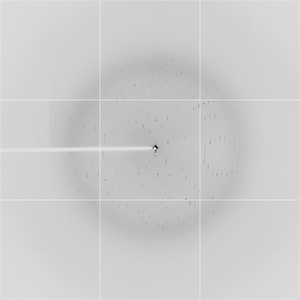

Dataset 187937_2_###.img details

Number of frames 179 (2 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 143.0
Wavelength [Å] 0.97927
Experiment Date 2012-10-18
Equipment 8.2.2 at ALS (Advanced Light Source)
