Diffraction project datasets GS13839B_3gza
Project details
| Title |

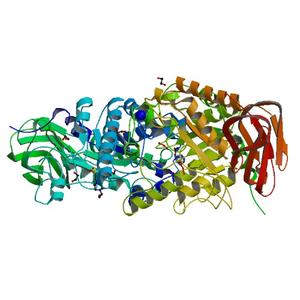

Crystal structure of putative alpha-L-fucosidase (NP_812709.1) from BACTEROIDES THETAIOTAOMICRON VPI-5482 at 1.60 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.14 / 0.17 |
| Unit cell edges [Å] |
117.05 x
81.53 x
111.57
|
| Unit cell angles [°] |
90.0,
103.6,
90.0
|
Dataset 109533_1_E1_###.mccd details
| Number of frames |
140 (1 - 140) |
| Distance [mm] |
220.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
249.0 |
| Wavelength [Å] |
0.97916 |
| Experiment Date |
2009-02-18 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

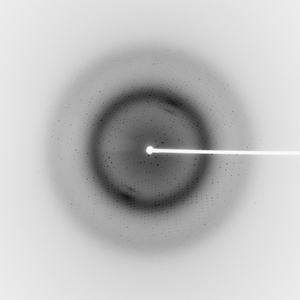

Dataset 109533_1_E2_###.mccd details
| Number of frames |
140 (1 - 140) |
| Distance [mm] |
220.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
249.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2009-02-18 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

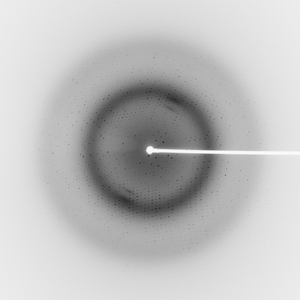

Dataset 109533_2_###.mccd details
| Number of frames |
140 (1 - 140) |
| Distance [mm] |
220.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
249.0 |
| Wavelength [Å] |
0.97828 |
| Experiment Date |
2009-02-18 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
