Diffraction project datasets GS13837A_3h3i

  • Method: MAD
  • Resolution: 2.2 Å
  • Space group: P 32 1 2
Download all images (5.3 GB)

PDB website for 3H3I
PDB validation report for 3H3I

doi:10.18430/M33H3I

Project details

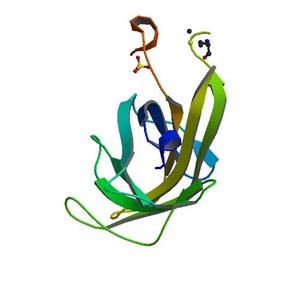

Title CRYSTAL STRUCTURE OF A PUTATIVE LIPID BINDING PROTEIN (BT_2261) FROM BACTEROIDES THETAIOTAOMICRON VPI-5482 AT 2.20 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.23
Unit cell edges [Å] 67.38 x 67.38 x 186.16
Unit cell angles [°] 90.0, 90.0, 120.0

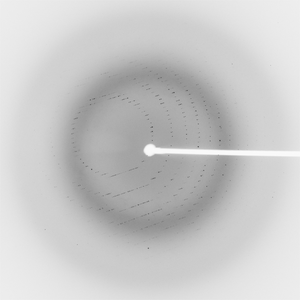

Dataset 111979_1_E1_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 335.0
Wavelength [Å] 0.97895
Experiment Date 2009-02-22
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

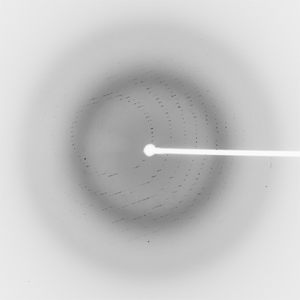

Dataset 111979_1_E2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 335.0
Wavelength [Å] 0.91837
Experiment Date 2009-02-22
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

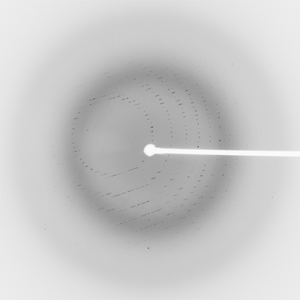

Dataset 111979_2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 275.0
Oscillation width [°] 1.00
Phi [°] 335.0
Wavelength [Å] 0.97833
Experiment Date 2009-02-23
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
