Diffraction project datasets GS13834A_3gf8
- Method: MAD
- Resolution: 2.2 Å
- Space group: P 41 21 2
PDB website for 3GF8
PDB validation report for 3GF8
doi:10.18430/M33GF8
Project details

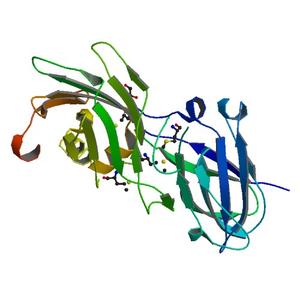

| Title | Crystal structure of putative polysaccharide binding proteins (DUF1812) (NP_809975.1) from BACTEROIDES THETAIOTAOMICRON VPI-5482 at 2.20 A resolution |
| Authors | Xu, Q., Abdubek, P., Astakhova, T., Axelrod, H.L., Bakolitsa, C., Cai, X., Carlton, D., Chen, C., Chiu, H.J., Chiu, M., Clayton, T., Das, D., Deller, M.C., Duan, L., Ellrott, K., Farr, C.L., Feuerhelm, J., Grant, J.C., Grzechnik, A., Han, G.W., Jaroszewski, L., Jin, K.K., Klock, H.E., Knuth, M.W., Kozbial, P., Krishna, S.S., Kumar, A., Marciano, D., McMullan, D., Miller, M.D., Morse, A.T., Nigoghossian, E., Nopakun, A., Okach, L., Puckett, C., Reyes, R., Sefcovic, N., Tien, H.J., Trame, C.B., van den Bedem, H., Weekes, D., Wooten, T., Yeh, A., Zhou, J., Hodgson, K.O., Wooley, J., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.19 / 0.23 |
| Unit cell edges [Å] | 106.89 x 106.89 x 79.14 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

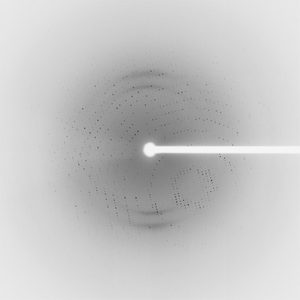

Dataset 99970_1_E1_###.mccd details
| Number of frames | 105 (1 - 105) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 35.0 |
| Wavelength [Å] | 0.97927 |
| Experiment Date | 2009-01-09 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
Dataset 99970_1_E2_###.mccd details
| Number of frames | 100 (1 - 100) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 35.0 |
| Wavelength [Å] | 0.91162 |
| Experiment Date | 2009-01-09 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
Dataset 99970_2_###.mccd details
| Number of frames | 100 (1 - 100) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 35.0 |
| Wavelength [Å] | 0.97915 |
| Experiment Date | 2009-01-09 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
