Diffraction project datasets GS13818A_3imm

  • Method: MAD
  • Resolution: 2.0 Å
  • Space group: P 31
Download all images (9.3 GB)

PDB website for 3IMM
PDB validation report for 3IMM

doi:10.18430/M33IMM

Project details

Title Crystal structure of Putative glycosyl hydrolase (YP_001301887.1) from Parabacteroides distasonis ATCC 8503 at 2.00 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.22
Unit cell edges [Å] 45.40 x 45.40 x 241.07
Unit cell angles [°] 90.0, 90.0, 120.0

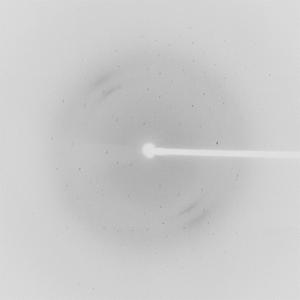

Dataset 117317_1_E1_###.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 335.0
Oscillation width [°] 0.25
Phi [°] 53.0
Wavelength [Å] 0.97874
Experiment Date 2009-04-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

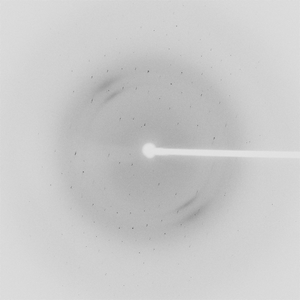

Dataset 117317_1_E2_###.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 335.0
Oscillation width [°] 0.25
Phi [°] 53.0
Wavelength [Å] 0.91162
Experiment Date 2009-04-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

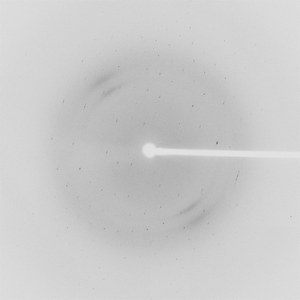

Dataset 117317_2_###.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 335.0
Oscillation width [°] 0.25
Phi [°] 53.0
Wavelength [Å] 0.97805
Experiment Date 2009-04-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
