Diffraction project datasets GS13815A_3htn

  • Method: MAD
  • Resolution: 1.5 Å
  • Space group: P 32
Download all images (6.9 GB)

PDB website for 3HTN
PDB validation report for 3HTN

doi:10.18430/M33HTN

Project details

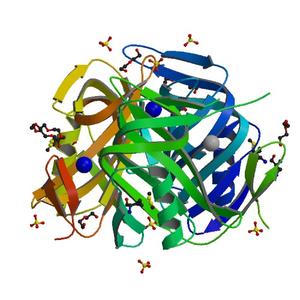

Title Crystal structure of a putative dna binding protein (bt_1116) from bacteroides thetaiotaomicron vpi-5482 at 1.50 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.14 / 0.17
Unit cell edges [Å] 90.69 x 90.69 x 53.89
Unit cell angles [°] 90.0, 90.0, 120.0

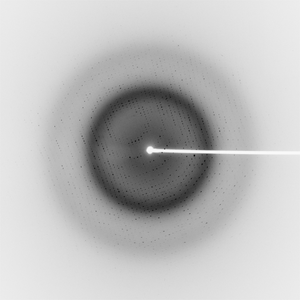

Dataset 109958_1_E1_###.mccd details

Number of frames 160 (1 - 160)
Distance [mm] 210.0
Oscillation width [°] 0.75
Phi [°] 314.0
Wavelength [Å] 0.97908
Experiment Date 2009-02-18
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

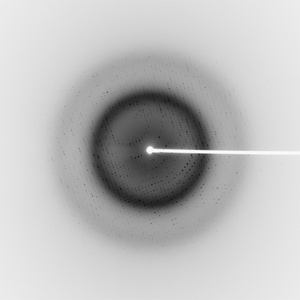

Dataset 109958_1_E2_###.mccd details

Number of frames 160 (1 - 160)
Distance [mm] 210.0
Oscillation width [°] 0.75
Phi [°] 314.0
Wavelength [Å] 0.91837
Experiment Date 2009-02-18
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

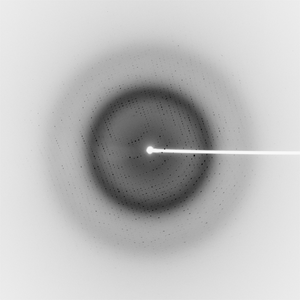

Dataset 109958_2_###.mccd details

Number of frames 160 (1 - 160)
Distance [mm] 210.0
Oscillation width [°] 0.75
Phi [°] 314.0
Wavelength [Å] 0.97840
Experiment Date 2009-02-18
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
