Diffraction project datasets GS13813A_3liu

  • Method: MAD
  • Resolution: 2.05 Å
  • Space group: P 21 21 21
Download all images (3.8 GB)

PDB website for 3LIU
PDB validation report for 3LIU

doi:10.18430/M33LIU

Project details

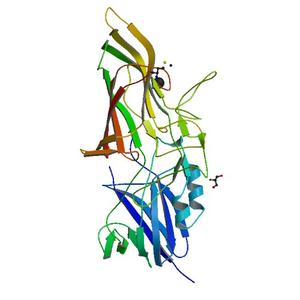

Title Crystal structure of Putative cell adhesion protein (YP_001304840.1) from Parabacteroides distasonis ATCC 8503 at 2.05 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.22
Unit cell edges [Å] 64.37 x 101.93 x 130.89
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 134804_1_E1_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 336.0
Wavelength [Å] 0.97939
Experiment Date 2009-11-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

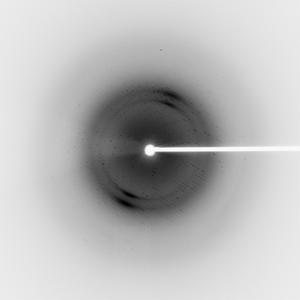

Dataset 134804_1_E2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 336.0
Wavelength [Å] 0.91837
Experiment Date 2009-11-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

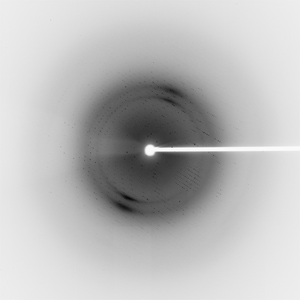

Dataset 134804_2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 336.0
Wavelength [Å] 0.97922
Experiment Date 2009-11-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
