Diffraction project datasets GS13775B_4fvs

  • Method: MAD
  • Resolution: 2.7 Å
  • Space group: P 21 21 2
Download all images (4.8 GB)

PDB website for 4FVS
PDB validation report for 4FVS

doi:10.18430/M34FVS

Project details

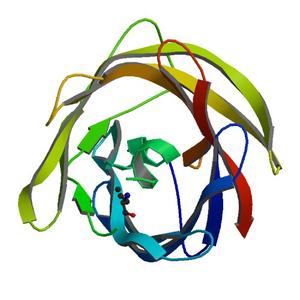

Title Crystal structure of a putative lipoprotein (BDI_3050) from Parabacteroides distasonis ATCC 8503 at 2.70 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.19 / 0.22
Unit cell edges [Å] 140.86 x 154.51 x 72.64
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 180831_1_E1_#####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 375.0
Oscillation width [°] 1.00
Phi [°] 86.0
Wavelength [Å] 0.97920
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

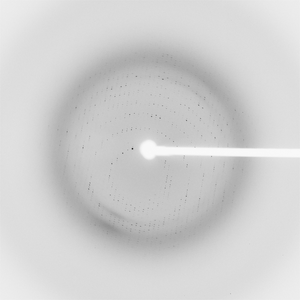

Dataset 180831_1_E2_#####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 375.0
Oscillation width [°] 1.00
Phi [°] 86.0
Wavelength [Å] 0.91162
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

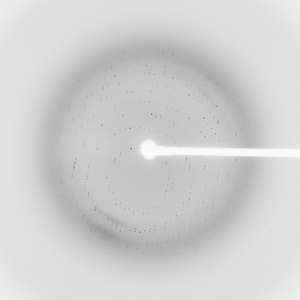

Dataset 180831_2_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 375.0
Oscillation width [°] 0.50
Phi [°] 86.0
Wavelength [Å] 0.97850
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
