Diffraction project datasets GS13775A_3fzx
Project details
| Title |

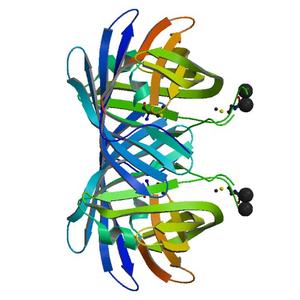

CRYSTAL STRUCTURE OF A PUTATIVE EXPORTED PROTEIN WITH YMCC-LIKE FOLD (BF2203) FROM BACTEROIDES FRAGILIS NCTC 9343 AT 2.22 A RESOLUTION |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.20 / 0.25 |
| Unit cell edges [Å] |
143.74 x
143.74 x
49.46
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

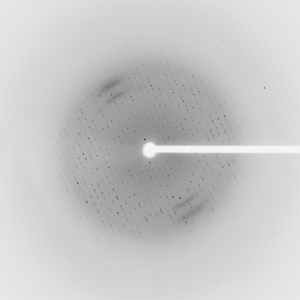

Dataset 104094_1_E1_###.mccd details
| Number of frames |
240 (1 - 240) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
319.0 |
| Wavelength [Å] |
0.97982 |
| Experiment Date |
2008-12-07 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

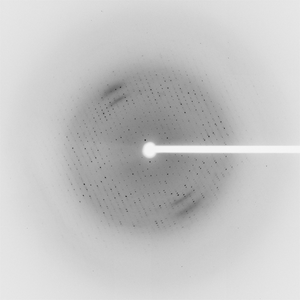

Dataset 104094_1_E2_###.mccd details
| Number of frames |
240 (1 - 240) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
319.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2008-12-07 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
