Diffraction project datasets GS13767A_3cjm

  • Method: MAD
  • Resolution: 1.5 Å
  • Space group: P 41 21 2
Download all images (3.7 GB)

PDB website for 3CJM
PDB validation report for 3CJM

doi:10.18430/M33CJM

Project details

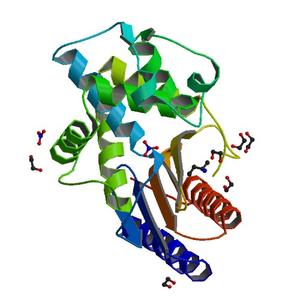

Title Crystal structure of putative beta-lactamase (NP_815223.1) from Enterococcus faecalis V583 at 1.50 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.17
Unit cell edges [Å] 64.97 x 64.97 x 140.90
Unit cell angles [°] 90.0, 90.0, 90.0

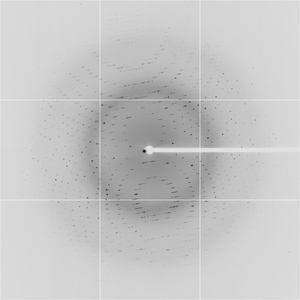

Dataset 77848_1_E1_###.img details

Number of frames 200 (1 - 200)
Distance [mm] 220.0
Oscillation width [°] 0.50
Phi [°] 263.0
Wavelength [Å] 0.97905
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)

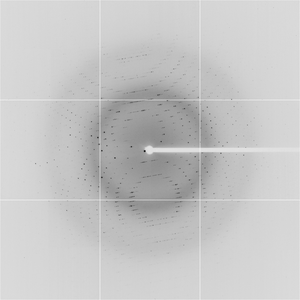

Dataset 77848_1_E2_###.img details

Number of frames 200 (1 - 200)
Distance [mm] 220.0
Oscillation width [°] 0.50
Phi [°] 263.0
Wavelength [Å] 0.91838
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)

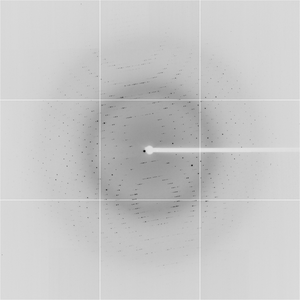

Dataset 77848_2_###.img details

Number of frames 200 (1 - 200)
Distance [mm] 220.0
Oscillation width [°] 0.50
Phi [°] 263.0
Wavelength [Å] 0.97849
Equipment BL1-5 at SSRL (Stanford Synchrotron Radiation Laboratory)
