Diffraction project datasets GS13738A_3kog

  • Method: MAD
  • Resolution: 1.85 Å
  • Space group: I 21 21 21
Download all images (3.2 GB)

PDB website for 3KOG
PDB validation report for 3KOG

doi:10.18430/M33KOG

Project details

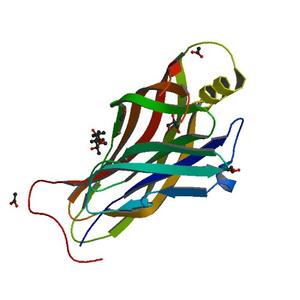

Title Crystal structure of Putative pore-forming toxin (YP_001301288.1) from Bacteroides vulgatus ATCC 8482 at 1.85 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 66.80 x 70.34 x 104.10
Unit cell angles [°] 90.0, 90.0, 90.0

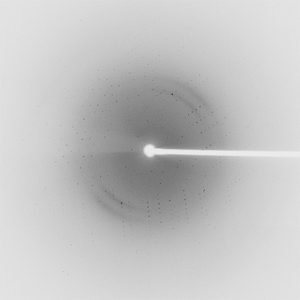

Dataset 123621_1_E1_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 285.0
Oscillation width [°] 1.00
Phi [°] 259.0
Wavelength [Å] 0.97926
Experiment Date 2009-06-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

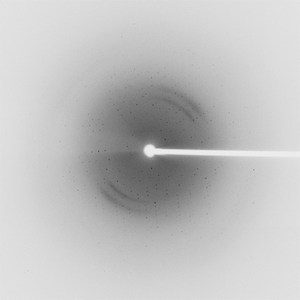

Dataset 123621_1_E2_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 285.0
Oscillation width [°] 1.00
Phi [°] 259.0
Wavelength [Å] 0.85503
Experiment Date 2009-06-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

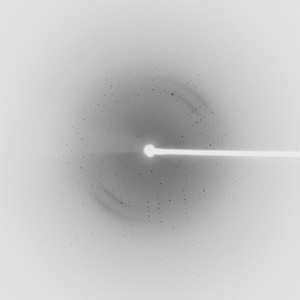

Dataset 123621_2_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 285.0
Oscillation width [°] 1.00
Phi [°] 259.0
Wavelength [Å] 0.97845
Experiment Date 2009-06-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
