Diffraction project datasets GS13708A_3k6o
Project details
| Title |

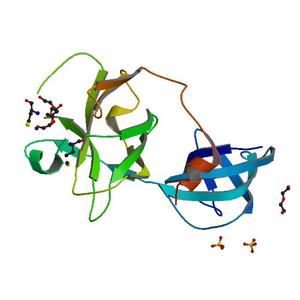

Crystal structure of protein of unknown function DUF1344 (YP_001299214.1) from Bacteroides vulgatus ATCC 8482 at 2.00 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.18 / 0.21 |
| Unit cell edges [Å] |
157.67 x
51.24 x
112.78
|
| Unit cell angles [°] |
90.0,
135.0,
90.0
|

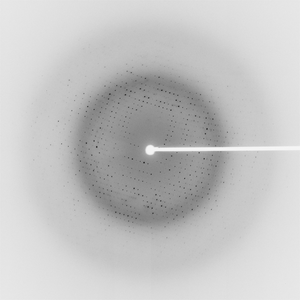

Dataset 121183_1_E1_###.mccd details
| Number of frames |
115 (1 - 115) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
223.0 |
| Wavelength [Å] |
0.97936 |
| Experiment Date |
2009-05-14 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

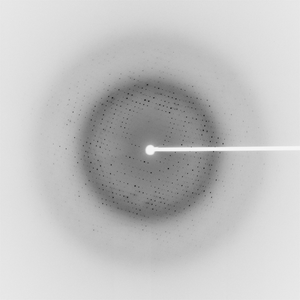

Dataset 121183_1_E2_###.mccd details
| Number of frames |
115 (1 - 115) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
223.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2009-05-14 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

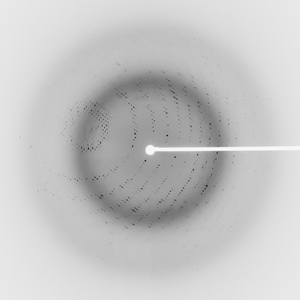

Dataset 121183_2_E1_###.mccd details
| Number of frames |
60 (1 - 60) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
338.0 |
| Wavelength [Å] |
0.97936 |
| Experiment Date |
2009-05-14 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
Dataset 121183_2_E2_###.mccd details
| Number of frames |
60 (1 - 60) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
338.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2009-05-14 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

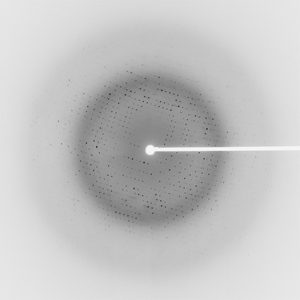

Dataset 121183_3_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
223.0 |
| Wavelength [Å] |
0.97922 |
| Experiment Date |
2009-05-14 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
