Diffraction project datasets GS13686A_3p1u

  • Method: MAD
  • Resolution: 2.05 Å
  • Space group: P 6
Download all images (2.9 GB)

PDB website for 3P1U
PDB validation report for 3P1U

doi:10.18430/M33P1U

Project details

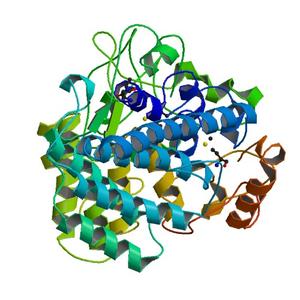

Title Crystal structure of a SusD homolog (BDI_0600) from Parabacteroides distasonis ATCC 8503 AT 2.05 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.24 / 0.27
Unit cell edges [Å] 130.24 x 130.24 x 114.82
Unit cell angles [°] 90.0, 90.0, 120.0

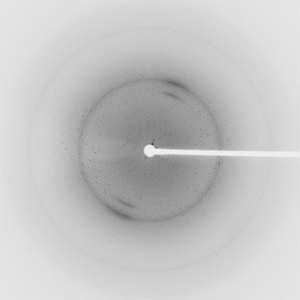

Dataset 123595_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 280.0
Oscillation width [°] 1.00
Phi [°] 350.0
Wavelength [Å] 0.97916
Experiment Date 2009-06-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

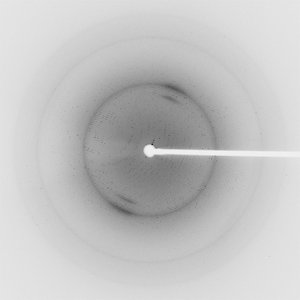

Dataset 123595_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 280.0
Oscillation width [°] 1.00
Phi [°] 350.0
Wavelength [Å] 0.91837
Experiment Date 2009-06-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

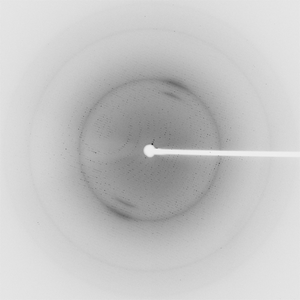

Dataset 123595_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 280.0
Oscillation width [°] 1.00
Phi [°] 350.0
Wavelength [Å] 0.97860
Experiment Date 2009-06-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
