Diffraction project datasets GS13649A_4l8n
Project details
| Title |

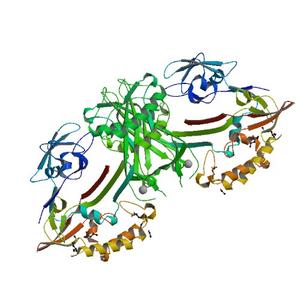

Crystal structure of a PDZ domain protein (BDI_1242) from Parabacteroides distasonis ATCC 8503 at 2.50 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.19 / 0.22 |
| Unit cell edges [Å] |
104.09 x
104.09 x
96.28
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

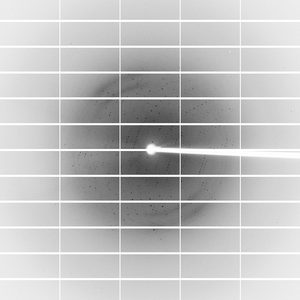

Dataset 135699_1_#####.cbf details
| Number of frames |
480 (1 - 480) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
0.25 |
| Phi [°] |
337.0 |
| Wavelength [Å] |
0.97882 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

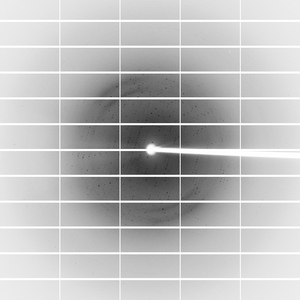

Dataset 135699_2_#####.cbf details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
0.25 |
| Phi [°] |
337.0 |
| Wavelength [Å] |
0.91837 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
