Diffraction project datasets GS13646A_3u1x
- Method: SAD
- Resolution: 1.7 Å
- Space group: P 1
PDB website for 3U1X
PDB validation report for 3U1X
doi:10.18430/M33U1X
Project details

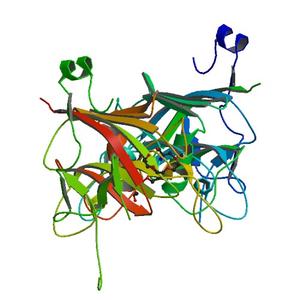

| Title | Crystal structure of a putative glycosyl hydrolase (BDI_1869) from Parabacteroides distasonis ATCC 8503 at 1.70 A resolution |
| Authors | Joint center for structural genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.16 / 0.20 |
| Unit cell edges [Å] | 38.69 x 41.21 x 77.32 |
| Unit cell angles [°] | 93.0, 91.6, 118.0 |

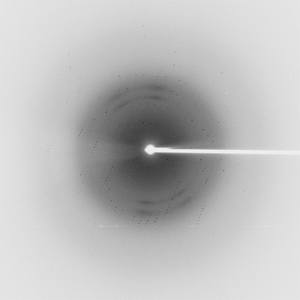

Dataset 168564_1_####.mccd details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 145.0 |
| Wavelength [Å] | 0.97907 |
| Experiment Date | 2011-07-05 |
| Equipment | BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

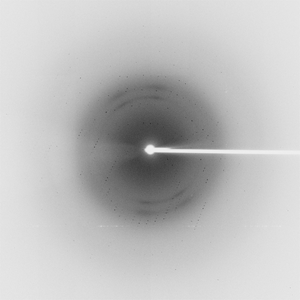

Dataset 168564_2_####.mccd details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 145.0 |
| Wavelength [Å] | 0.97907 |
| Experiment Date | 2011-07-05 |
| Equipment | BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
