Diffraction project datasets GS13641A_3hbk

  • Method: MAD
  • Resolution: 2.36 Å
  • Space group: P 41 21 2
Download all images (3.0 GB)

PDB website for 3HBK
PDB validation report for 3HBK

doi:10.18430/M33HBK

Project details

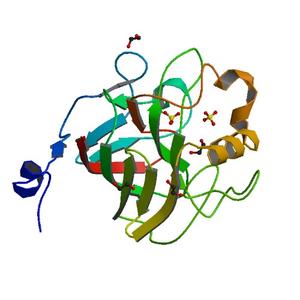

Title Crystal structure of putative glycosyl hydrolase, was Domain of Unknown Function (DUF1080) (YP_001302580.1) from Parabacteroides distasonis ATCC 8503 at 2.36 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.25
Unit cell edges [Å] 61.01 x 61.01 x 167.33
Unit cell angles [°] 90.0, 90.0, 90.0

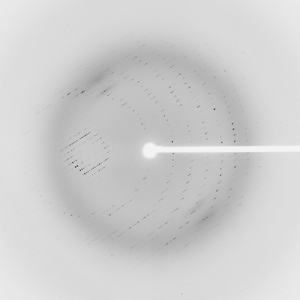

Dataset 114357_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 228.0
Wavelength [Å] 0.97932
Experiment Date 2009-03-19
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

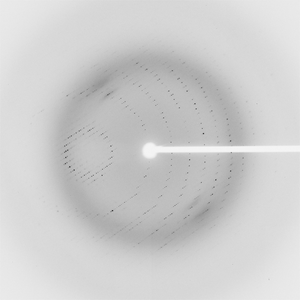

Dataset 114357_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 228.0
Wavelength [Å] 0.91837
Experiment Date 2009-03-19
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

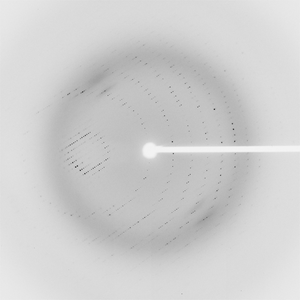

Dataset 114357_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 228.0
Wavelength [Å] 0.97915
Experiment Date 2009-03-19
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
