Diffraction project datasets GS13599A_3fdh

  • Method: MAD
  • Resolution: 1.75 Å
  • Space group: I 2 2 2
Download all images (3.3 GB)

PDB website for 3FDH
PDB validation report for 3FDH

doi:10.18430/M33FDH

Project details

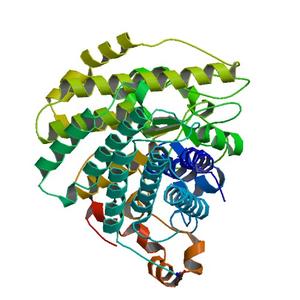

Title Crystal structure of a susd/ragb family protein (bt_2033) from bacteroides thetaiotaomicron vpi-5482 at 1.75 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 83.85 x 116.71 x 118.96
Unit cell angles [°] 90.0, 90.0, 90.0

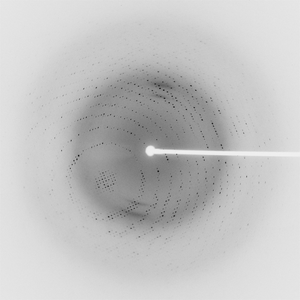

Dataset 97893_1_E1_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 328.0
Wavelength [Å] 0.97871
Experiment Date 2008-11-12
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

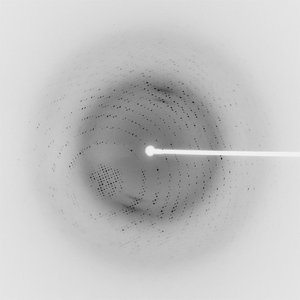

Dataset 97893_1_E2_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 328.0
Wavelength [Å] 0.91162
Experiment Date 2008-11-12
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

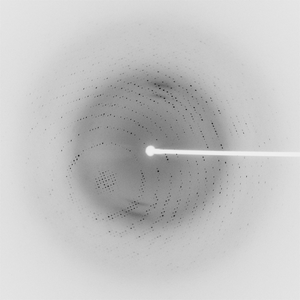

Dataset 97893_2_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 328.0
Wavelength [Å] 0.97799
Experiment Date 2008-11-13
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
