Diffraction project datasets GS13576A_4e0e
- Method: MAD
- Resolution: 2.9 Å
- Space group: P 1 21 1
PDB website for 4E0E
PDB validation report for 4E0E
doi:10.18430/M34E0E
Project details
| Title | Crystal structure of a DUF4450 family protein (BT_4147) from Bacteroides thetaiotaomicron VPI-5482 at 2.90 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.19 / 0.22 |
| Unit cell edges [Å] | 35.88 x 146.47 x 72.37 |
| Unit cell angles [°] | 90.0, 99.7, 90.0 |

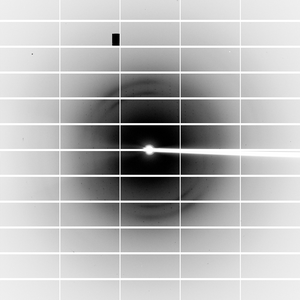

Dataset 173170_1_E1_#####.cbf details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 325.0 |
| Wavelength [Å] | 0.97903 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

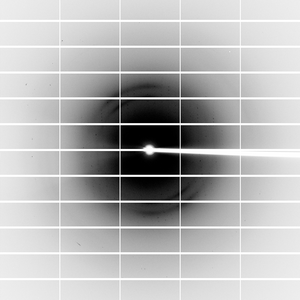

Dataset 173170_1_E2_#####.cbf details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 325.0 |
| Wavelength [Å] | 0.91837 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
