Diffraction project datasets GS13561A_3gyc

  • Method: MAD
  • Resolution: 1.85 Å
  • Space group: P 1 21 1
Download all images (15.2 GB)

PDB website for 3GYC
PDB validation report for 3GYC

doi:10.18430/M33GYC

Project details

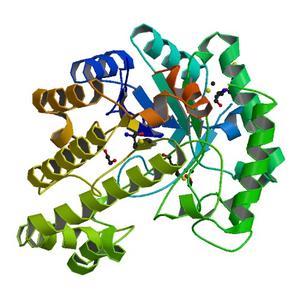

Title Crystal structure of putative glycoside hydrolase (YP_001304622.1) from Parabacteroides distasonis ATCC 8503 at 1.85 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 60.21 x 84.92 x 77.99
Unit cell angles [°] 90.0, 94.3, 90.0

Dataset 107325_1_E1_###.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 105.0
Wavelength [Å] 0.97954
Experiment Date 2009-01-29
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

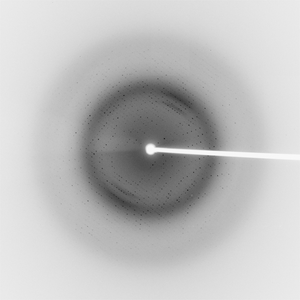

Dataset 107325_1_E2_###.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 105.0
Wavelength [Å] 0.91162
Experiment Date 2009-01-29
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

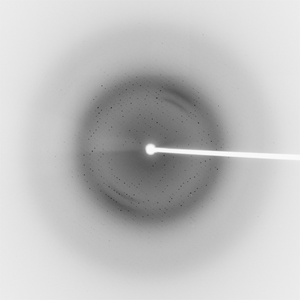

Dataset 107325_2_###.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 105.0
Wavelength [Å] 0.97913
Experiment Date 2009-01-29
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
