Diffraction project datasets GS13544C_3rwx

  • Method: MAD
  • Resolution: 2.4 Å
  • Space group: P 31 2 1
Download all images (8.3 GB)

PDB website for 3RWX
PDB validation report for 3RWX

doi:10.18430/M33RWX

Project details

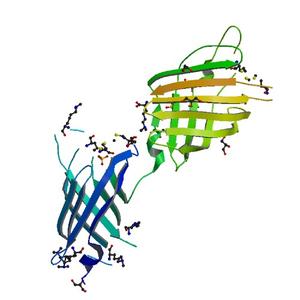

Title Crystal structure of a putative outer membrane protein (BF2706) from Bacteroides fragilis NCTC 9343 at 2.40 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.24
Unit cell edges [Å] 154.15 x 154.15 x 40.16
Unit cell angles [°] 90.0, 90.0, 120.0

Dataset 165832_1_E1_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 370.0
Oscillation width [°] 0.50
Phi [°] 217.0
Wavelength [Å] 0.97934
Experiment Date 2011-03-25
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

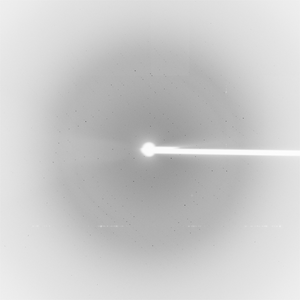

Dataset 165832_1_E2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 370.0
Oscillation width [°] 0.50
Phi [°] 217.0
Wavelength [Å] 0.96109
Experiment Date 2011-03-25
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

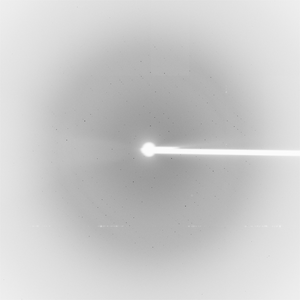

Dataset 165832_2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 370.0
Oscillation width [°] 0.50
Phi [°] 217.0
Wavelength [Å] 0.97908
Experiment Date 2011-03-25
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
