Diffraction project datasets GS13500A_3u6g

  • Method: MAD
  • Resolution: 1.35 Å
  • Space group: P 21 21 2
Download all images (9.2 GB)

PDB website for 3U6G
PDB validation report for 3U6G

doi:10.18430/M33U6G

Project details

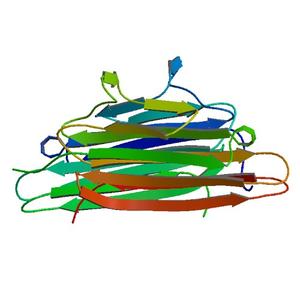

Title Crystal structure of a domain of unknown function, DUF4425 (BVU_3708) from Bacteroides vulgatus ATCC 8482 at 1.35 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.16 / 0.21
Unit cell edges [Å] 52.24 x 99.30 x 41.08
Unit cell angles [°] 90.0, 90.0, 90.0

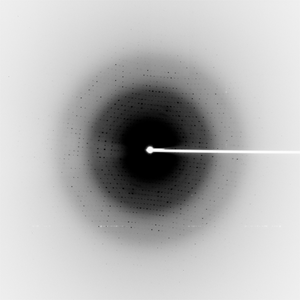

Dataset 169102_1_E1_####.mccd details

Number of frames 190 (1 - 190)
Distance [mm] 180.0
Oscillation width [°] 0.50
Phi [°] 250.0
Wavelength [Å] 0.97961
Experiment Date 2011-07-18
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

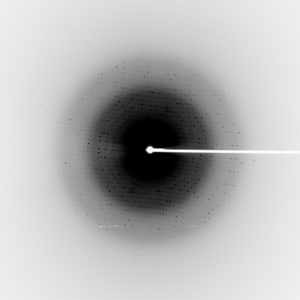

Dataset 169102_1_E2_####.mccd details

Number of frames 190 (1 - 190)
Distance [mm] 180.0
Oscillation width [°] 0.50
Phi [°] 250.0
Wavelength [Å] 0.96109
Experiment Date 2011-07-18
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

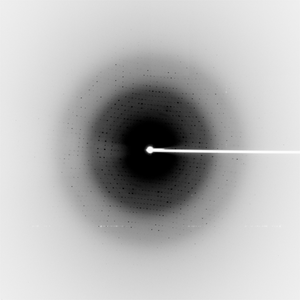

Dataset 169102_2_####.mccd details

Number of frames 190 (1 - 190)
Distance [mm] 180.0
Oscillation width [°] 0.50
Phi [°] 250.0
Wavelength [Å] 0.97946
Experiment Date 2011-07-18
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
