Diffraction project datasets GS13467B_3k50
- Method: MAD
- Resolution: 2.0 Å
- Space group: P 21 21 21
PDB website for 3K50
PDB validation report for 3K50
doi:10.18430/M33K50
Project details

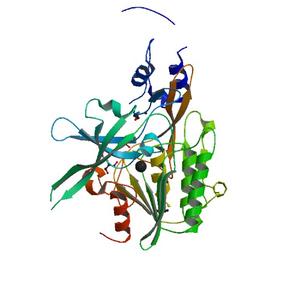

| Title | Crystal structure of Putative S41 protease (YP_211611.1) from Bacteroides fragilis NCTC 9343 at 2.00 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.16 / 0.21 |
| Unit cell edges [Å] | 42.27 x 91.43 x 107.13 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

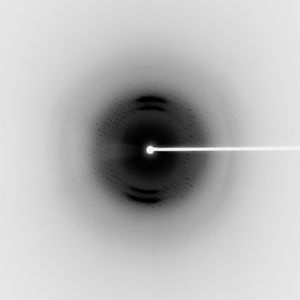

Dataset 120692_1_E1_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 316.0 |
| Wavelength [Å] | 0.97936 |
| Experiment Date | 2009-05-14 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

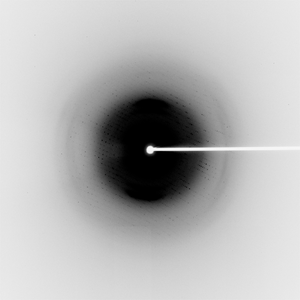

Dataset 120692_1_E2_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 316.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2009-05-14 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
