Diffraction project datasets GS13437B_4yjw
- Method: SAD
- Resolution: 1.8 Å
- Space group: P 41 21 2
PDB website for 4YJW
PDB validation report for 4YJW
doi:10.18430/M3N30V
Project details

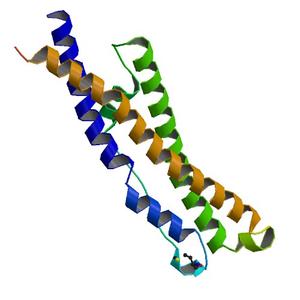

| Title | Crystal structure of a DUF3829 family protein (BVU_3067) from Bacteroides vulgatus ATCC 8482 at 1.80 A resolution |
| Authors | JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG) |
| Bioentity | None |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 70.77 x 70.77 x 67.47 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

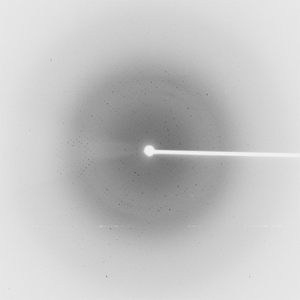

Dataset 209884_1_#####.mccd details
| Number of frames | 480 (1 - 480) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 0.25 |
| Phi [°] | 120.0 |
| Wavelength [Å] | 0.97920 |
| Experiment Date | 2015-02-04 |
| Equipment | BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

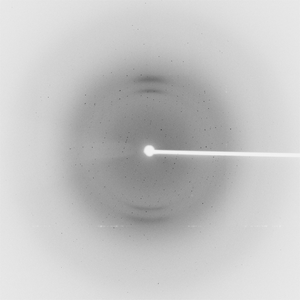

Dataset 209884_2_#####.mccd details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 0.25 |
| Phi [°] | 240.0 |
| Wavelength [Å] | 0.97920 |
| Experiment Date | 2015-02-04 |
| Equipment | BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
