Diffraction project datasets GS13419F_4j8q

  • Method: MAD
  • Resolution: 2.5 Å
  • Space group: C 2 2 21
Download all images (2.3 GB)

PDB website for 4J8Q
PDB validation report for 4J8Q

doi:10.18430/M34J8Q

Project details

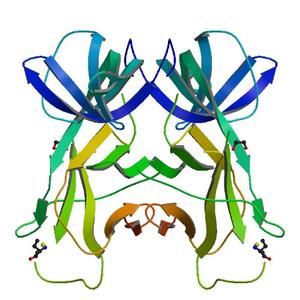

Title Crystal structure of a NigD-like protein (BF0700) from Bacteroides fragilis NCTC 9343 at 2.50 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.20 / 0.25
Unit cell edges [Å] 79.56 x 124.43 x 56.07
Unit cell angles [°] 90.0, 90.0, 90.0

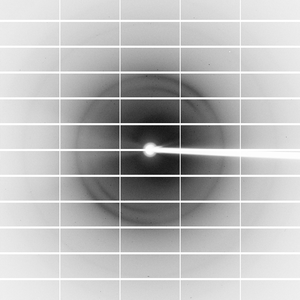

Dataset 188517_1_E1_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 380.0
Oscillation width [°] 0.50
Phi [°] 240.0
Wavelength [Å] 0.97944
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

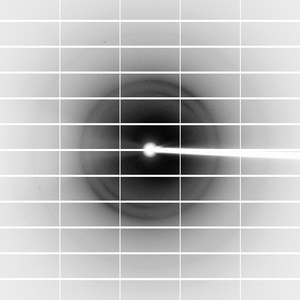

Dataset 188517_1_E2_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 380.0
Oscillation width [°] 0.50
Phi [°] 240.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

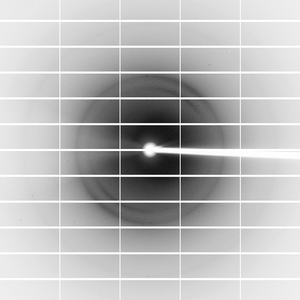

Dataset 188517_2_#####.cbf details

Number of frames 240 (1 - 240)
Distance [mm] 380.0
Oscillation width [°] 0.50
Phi [°] 240.0
Wavelength [Å] 0.97853
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
