Diffraction project datasets GS13416E_3hbz
- Method: SAD
- Resolution: 2.05 Å
- Space group: P 32 2 1
PDB website for 3HBZ
doi:10.18430/M33HBZ
Project details

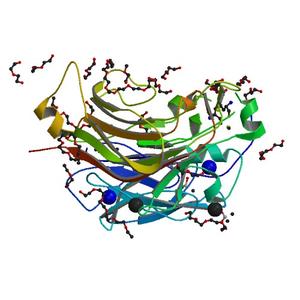

| Title | Crystal structure of a putative glycoside hydrolase (bt_2081) from bacteroides thetaiotaomicron vpi-5482 at 2.05 A resolution |
| Authors | Yeh, A.P., Abdubek, P., Astakhova, T., Axelrod, H.L., Bakolitsa, C., Cai, X., Carlton, D., Chen, C., Chiu, H.J., Chiu, M., Clayton, T., Das, D., Deller, M.C., Duan, L., Ellrott, K., Farr, C.L., Feuerhelm, J., Grant, J.C., Grzechnik, A., Han, G.W., Jaroszewski, L., Jin, K.K., Klock, H.E., Knuth, M.W., Kozbial, P., Krishna, S.S., Kumar, A., Lam, W.W., Marciano, D., McMullan, D., Miller, M.D., Morse, A.T., Nigoghossian, E., Nopakun, A., Okach, L., Puckett, C., Reyes, R., Tien, H.J., Trame, C.B., van den Bedem, H., Weekes, D., Wooten, T., Xu, Q., Hodgson, K.O., Wooley, J., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| R / Rfree | 0.16 / 0.19 |
| Unit cell edges [Å] | 94.55 x 94.55 x 107.81 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

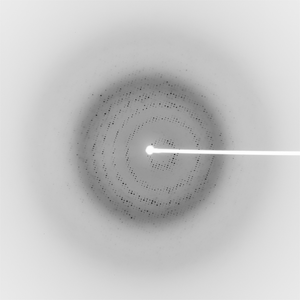

Dataset 109942_1_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 249.7 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 286.0 |
| Wavelength [Å] | 0.97852 |
| Experiment Date | 2009-02-19 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

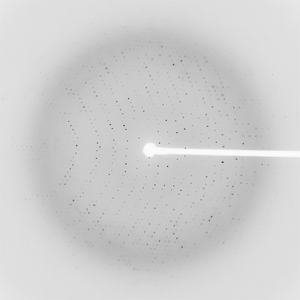

Dataset 109942_2_###.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 400.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 16.0 |
| Wavelength [Å] | 0.97852 |
| Experiment Date | 2009-02-19 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
