Diffraction project datasets GS13402A_4r5o

  • Method: MAD
  • Resolution: 2.64 Å
  • Space group: P 31
Download all images (4.7 GB)

PDB website for 4R5O
PDB validation report for 4R5O

doi:10.18430/M34R5O

Project details

Title Crystal structure of a Quinonprotein alcohol dehydrogenase-like protein (BT1487) from Bacteroides thetaiotaomicron VPI-5482 at 2.64 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.20
Unit cell edges [Å] 155.54 x 155.54 x 94.64
Unit cell angles [°] 90.0, 90.0, 120.0

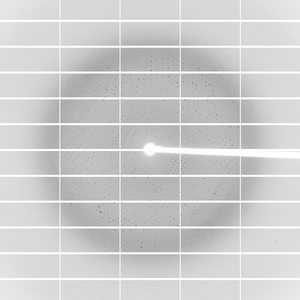

Dataset 197295_1_E1_#####.cbf details

Number of frames 400 (1 - 400)
Distance [mm] 480.0
Oscillation width [°] 0.30
Phi [°] 274.0
Wavelength [Å] 0.97941
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

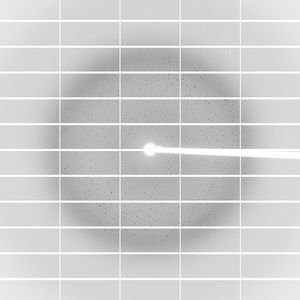

Dataset 197295_1_E2_#####.cbf details

Number of frames 400 (1 - 400)
Distance [mm] 480.0
Oscillation width [°] 0.30
Phi [°] 274.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

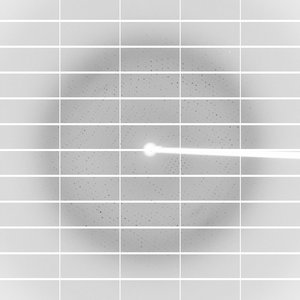

Dataset 197295_2_#####.cbf details

Number of frames 400 (1 - 400)
Distance [mm] 480.0
Oscillation width [°] 0.30
Phi [°] 274.0
Wavelength [Å] 0.97868
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
