Diffraction project datasets GS13389B_3sy6

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: P 1 21 1
Download all images (13.8 GB)

PDB website for 3SY6
PDB validation report for 3SY6

doi:10.18430/M33SY6

Project details

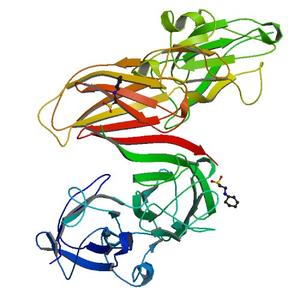

Title Crystal structure of a fimbrial protein BF1861 [Bacteroides fragilis NCTC 9343] (BF1861) from Bacteroides fragilis NCTC 9343 at 1.90 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 40.41 x 120.46 x 53.49
Unit cell angles [°] 90.0, 90.9, 90.0

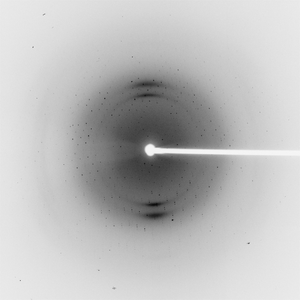

Dataset 168339_1_E1_####.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 260.0
Oscillation width [°] 0.50
Phi [°] 263.0
Wavelength [Å] 0.97932
Experiment Date 2011-06-24
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

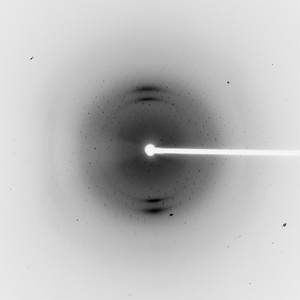

Dataset 168339_1_E2_####.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 260.0
Oscillation width [°] 0.50
Phi [°] 263.0
Wavelength [Å] 0.91162
Experiment Date 2011-06-24
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

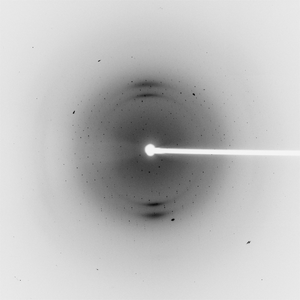

Dataset 168339_2_####.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 260.0
Oscillation width [°] 0.50
Phi [°] 263.0
Wavelength [Å] 0.97907
Experiment Date 2011-06-24
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
