Diffraction project datasets GS13310B_3u22

  • Method: MAD
  • Resolution: 2.12 Å
  • Space group: P 31 2 1
Download all images (7.8 GB)

PDB website for 3U22
PDB validation report for 3U22

doi:10.18430/M33U22

Project details

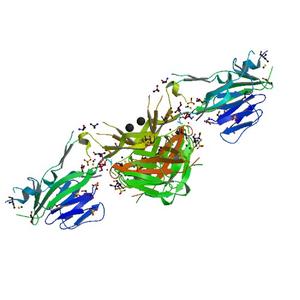

Title Crystal structure of a putative HmuY_like heme binding protein (BVU_2192) from Bacteroides vulgatus ATCC 8482 at 2.12 A resolution
Authors Joint center for structural genomics (JCSG)
Bioentity None
R / Rfree 0.17 / 0.17
Unit cell edges [Å] 128.41 x 128.41 x 110.79
Unit cell angles [°] 90.0, 90.0, 120.0

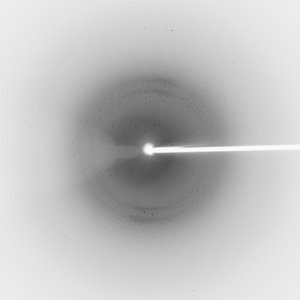

Dataset 169077_1_E1_####.mccd details

Number of frames 184 (1 - 184)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 208.0
Wavelength [Å] 0.97922
Experiment Date 2011-07-20
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

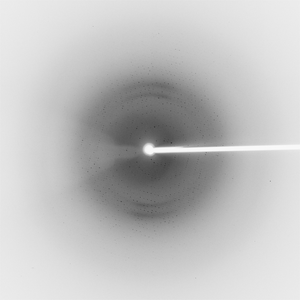

Dataset 169077_1_E2_####.mccd details

Number of frames 184 (1 - 184)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 208.0
Wavelength [Å] 0.91837
Experiment Date 2011-07-20
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

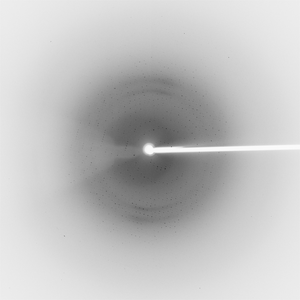

Dataset 169077_2_####.mccd details

Number of frames 184 (1 - 184)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 208.0
Wavelength [Å] 0.97889
Experiment Date 2011-07-20
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
