Diffraction project datasets GS13310A_4gbs
- Method: MAD
- Resolution: 2.48 Å
- Space group: P 41 2 2
PDB website for 4GBS
PDB validation report for 4GBS
doi:10.18430/M34GBS
Project details

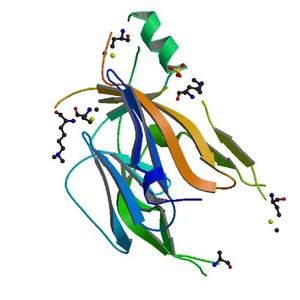

| Title | Crystal structure of a putative lipoprotein (BF2707) from Bacteroides fragilis NCTC 9343 at 2.75 A resolution |
| Authors | JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG) |
| Bioentity | None |
| R / Rfree | 0.20 / 0.23 |
| Unit cell edges [Å] | 66.01 x 66.01 x 263.46 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

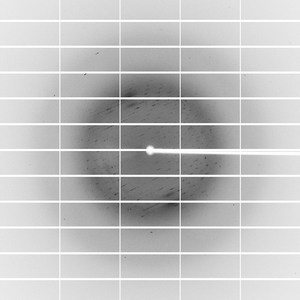

Dataset 182072_1_#####.cbf details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.30 |
| Phi [°] | 135.0 |
| Wavelength [Å] | 0.97950 |
| Experiment Date | 2012-05-31 |
| Equipment | BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

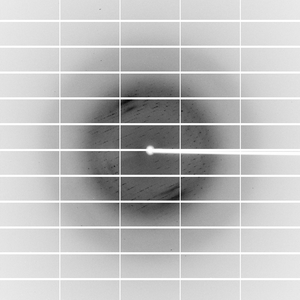

Dataset 182072_2_#####.cbf details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.30 |
| Phi [°] | 135.0 |
| Wavelength [Å] | 0.91840 |
| Experiment Date | 2012-05-31 |
| Equipment | BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
