Diffraction project datasets GS13306A_3s25

  • Method: MAD
  • Resolution: 1.88 Å
  • Space group: I 4
Download all images (9.4 GB)

PDB website for 3S25
PDB validation report for 3S25

doi:10.18430/M33S25

Project details

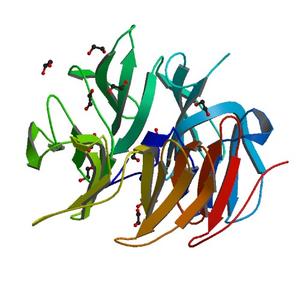

Title Crystal structure of a 7-bladed beta-propeller-like protein (EUBREC_1955) from Eubacterium rectale ATCC 33656 at 1.88 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.16 / 0.18
Unit cell edges [Å] 118.65 x 118.65 x 53.89
Unit cell angles [°] 90.0, 90.0, 90.0

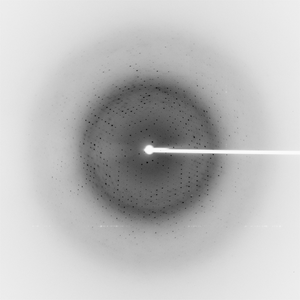

Dataset 166083_1_E1_####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 240.0
Oscillation width [°] 0.50
Phi [°] 193.0
Wavelength [Å] 0.97929
Experiment Date 2011-03-31
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

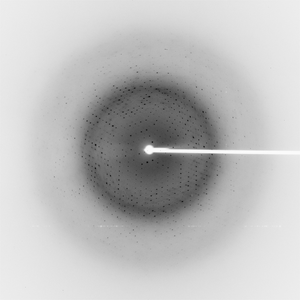

Dataset 166083_1_E2_####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 240.0
Oscillation width [°] 0.50
Phi [°] 193.0
Wavelength [Å] 0.96109
Experiment Date 2011-03-31
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

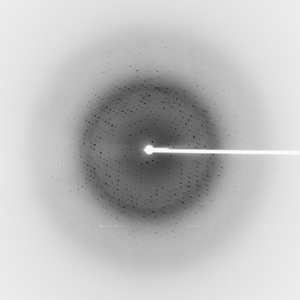

Dataset 166083_2_####.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 240.0
Oscillation width [°] 0.50
Phi [°] 193.0
Wavelength [Å] 0.97907
Experiment Date 2011-03-31
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
