Diffraction project datasets GS13282A_3ty1

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: C 1 2 1
Download all images (14.7 GB)

PDB website for 3TY1
PDB validation report for 3TY1

doi:10.18430/M33TY1

Project details

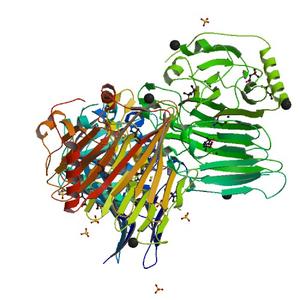

Title Crystal structure of a putative aldose 1-epimerase (KPN_04629) from Klebsiella pneumoniae subsp. pneumoniae MGH 78578 at 1.90 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 124.03 x 119.95 x 103.01
Unit cell angles [°] 90.0, 106.7, 90.0

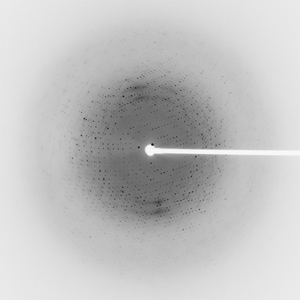

Dataset 167720_1_E1_####.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 150.0
Wavelength [Å] 0.97932
Experiment Date 2011-06-23
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

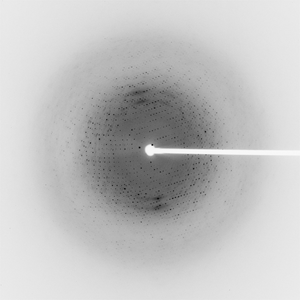

Dataset 167720_1_E2_####.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 150.0
Wavelength [Å] 0.91162
Experiment Date 2011-06-23
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

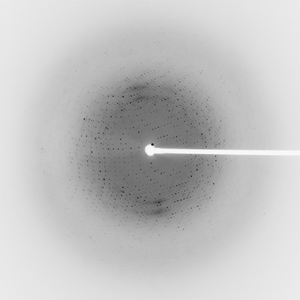

Dataset 167720_2_####.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 150.0
Wavelength [Å] 0.97915
Experiment Date 2011-06-23
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
