Diffraction project datasets GS13265A_3msw

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: P 21 21 21
Download all images (3.3 GB)

PDB website for 3MSW
PDB validation report for 3MSW

doi:10.18430/M33MSW

Project details

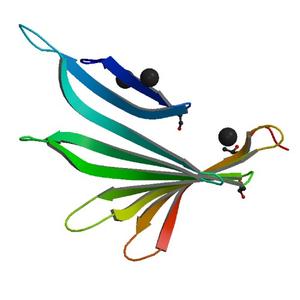

Title Crystal structure of a Protein with unknown function (BF3112) from Bacteroides fragilis NCTC 9343 at 1.90 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.23
Unit cell edges [Å] 45.57 x 57.55 x 65.03
Unit cell angles [°] 90.0, 90.0, 90.0

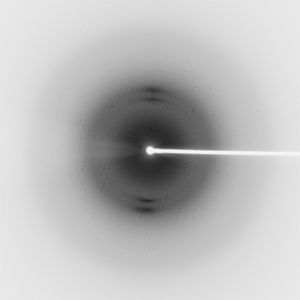

Dataset 152725_1_E1_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 101.0
Wavelength [Å] 0.97925
Experiment Date 2010-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

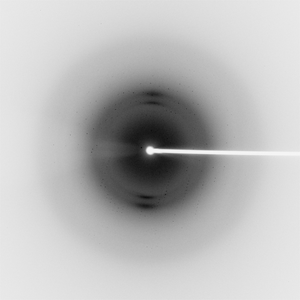

Dataset 152725_1_E2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 101.0
Wavelength [Å] 0.91837
Experiment Date 2010-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

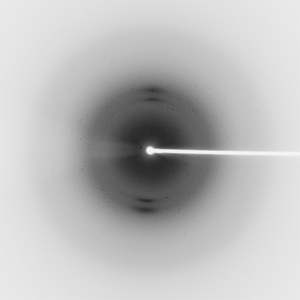

Dataset 152725_2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 101.0
Wavelength [Å] 0.97864
Experiment Date 2010-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
