Diffraction project datasets GS13256M_4raa

  • Method: MAD
  • Resolution: 2.6 Å
  • Space group: C 1 2 1
Download all images (2.6 GB)

PDB website for 4RAA
PDB validation report for 4RAA

doi:10.18430/M34RAA

Project details

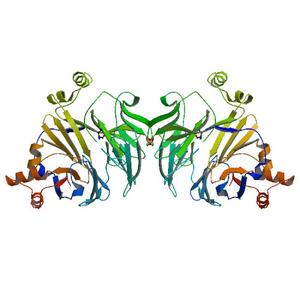

Title Crystal structure of a Putative exported protein (BF0058) from Bacteroides fragilis NCTC 9343 at 2.60 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.21 / 0.26
Unit cell edges [Å] 127.80 x 55.21 x 81.33
Unit cell angles [°] 90.0, 122.3, 90.0

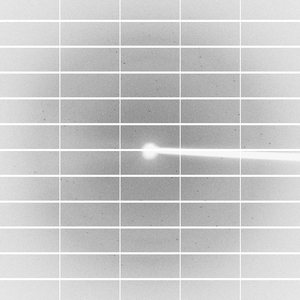

Dataset 159940_1_E1_#####.cbf details

Number of frames 300 (1 - 300)
Distance [mm] 570.0
Oscillation width [°] 0.50
Phi [°] 98.0
Wavelength [Å] 0.97947
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

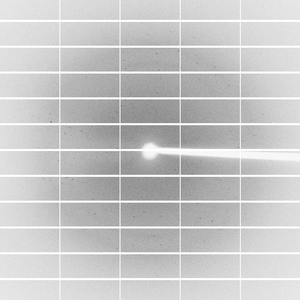

Dataset 159940_1_E2_#####.cbf details

Number of frames 300 (1 - 300)
Distance [mm] 570.0
Oscillation width [°] 0.50
Phi [°] 98.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

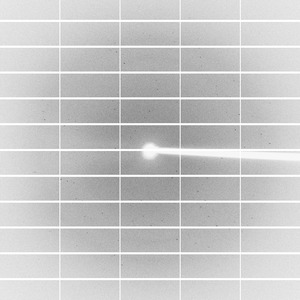

Dataset 159940_2_#####.cbf details

Number of frames 300 (1 - 300)
Distance [mm] 570.0
Oscillation width [°] 0.50
Phi [°] 98.0
Wavelength [Å] 0.97908
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
