Diffraction project datasets GS13232A_4o2t

  • Method: MAD
  • Resolution: 2.4 Å
  • Space group: P 43 21 2
Download all images (4.0 GB)

PDB website for 4O2T
PDB validation report for 4O2T

doi:10.18430/M34O2T

Project details

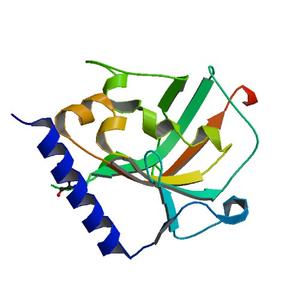

Title Crystal structure of a DUF4827 family protein (BDI_1692) from Parabacteroides distasonis ATCC 8503 at 2.40 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 92.27 x 92.27 x 112.85
Unit cell angles [°] 90.0, 90.0, 90.0

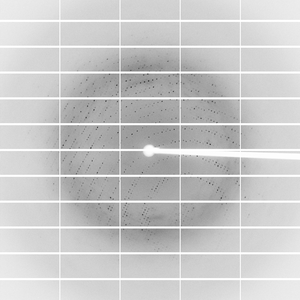

Dataset 200063_1_E1_#####.cbf details

Number of frames 360 (1 - 360)
Distance [mm] 420.0
Oscillation width [°] 0.25
Phi [°] 69.0
Wavelength [Å] 0.97953
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

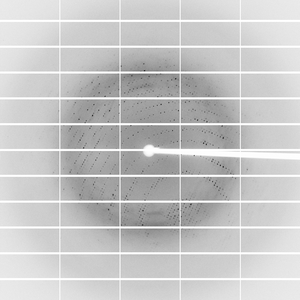

Dataset 200063_1_E2_#####.cbf details

Number of frames 360 (1 - 360)
Distance [mm] 420.0
Oscillation width [°] 0.25
Phi [°] 69.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 200063_2_#####.cbf details

Number of frames 360 (1 - 360)
Distance [mm] 420.0
Oscillation width [°] 0.25
Phi [°] 69.0
Wavelength [Å] 0.97903
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
